Tiny GSM/GPRS module with SIMCOM's SIM800H. Measuring only 39x48[mm] this module has everything you need to 'IoT enable' your next project. We provide .NET nanoFramework and Micro Framework drivers that makes using it a breeze.

This is basically a carrier board for the SIMCOM's SIM800H, you can use it with your own software driver. It's not mandatory to use ours.

Features (supported by the .NET nanoFramework and Micro Framework drivers)¹⁾:

Quad band 850/900/1800/1900MHz
GPRS multi-slot class 12/10; mobile station class B
Supply voltage range 3.4 to 4.3V
TCP sockets (with TLS support)
HTTP(S) client
SMS
SNTP
GPS like location service through SIMCOM API
UART pins supporting 3.0V and 3.3V levels
Power and network status LEDs
SIM card holder
uFL antenna connector
Castellation pins for easy prototyping and production use
Size: 39x48[mm]
Operating temperature range: -40 to +85°C
Certifications: CE, GCF, FCC, ROHS, REACH

1) SIM800H has several other features that are still available but aren't exposed through the supplied driver and/or hardware pins.

SIM800H modes and power consumption

2A peak burst when transmiting
148mA to 344mA @ Active GPRS data mode
1.02mA @ Idle with full funcionality
0.796mA @ Minimum funcionality
~60uA @ Power down

Power supply

Any power supply (4.3V max!) able to withstand the 2A peak bursts will work. We recommend using a Li-Polymer or Li-Ion battery.

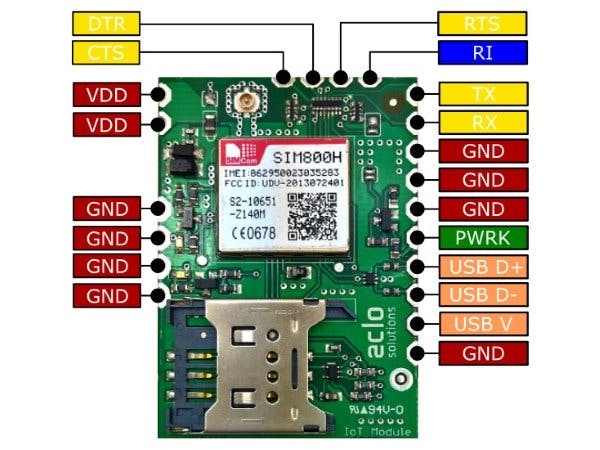

Available pins & signals

UART signals: TX,RX, DTR, RTS & CTS
Power-key pin (to control SIM800H power on/off)
Ring indicator (to signal incoming call or SMS)
2xVcc (4.3V max!)
8xGND

UART signal levels

UART signals can be connected to host system using 3.0V or 3.3V voltage levels. The selection is carried through a two-position solde jumper. Default is 3.3V.

LED indicators

The module includes LEDs for power and network status.
LEDs have relevant power consumption and conserving power is important in battery powered devices. For this reason LEDs are powered through a solder jumper that you can open in production devices after initial testing and debuging. In field operation you can easily short the jumper with a screw driver tip, for example, for a quick visual debug of the module status.

Power LED (green)
On when module is active (powered on).

Network status LED (blue)

fast blink (~300ms period) on GPRS communication active
blink (~800ms period) when module is not registered
slow blink (~3s period) when module is registered

.NET nanoFramework driver, support libraries and code examples

We actively maintain a driver for .NET nanoFramework that is available as a Nuget package.

We actively maintain a .NET nanoFramework build of AMQP Lite for the SIM800H module available as a Nuget package.

Check the documentation of the .NET nanoFramework driver here.

For code samples and example apps please check the GitHub repository

.NET Micro Framework driver, support libraries and code examples

We provide a driver for .NET Micro Framework (v4.3 and v4.4) that is available as a Nuget package.

We provide a .NET Micro Framework (v4.3 and v4.4) build of AMQP Lite for the SIM800H module available as a Nuget package.

Check the documentation of the .NETMF driver here.
